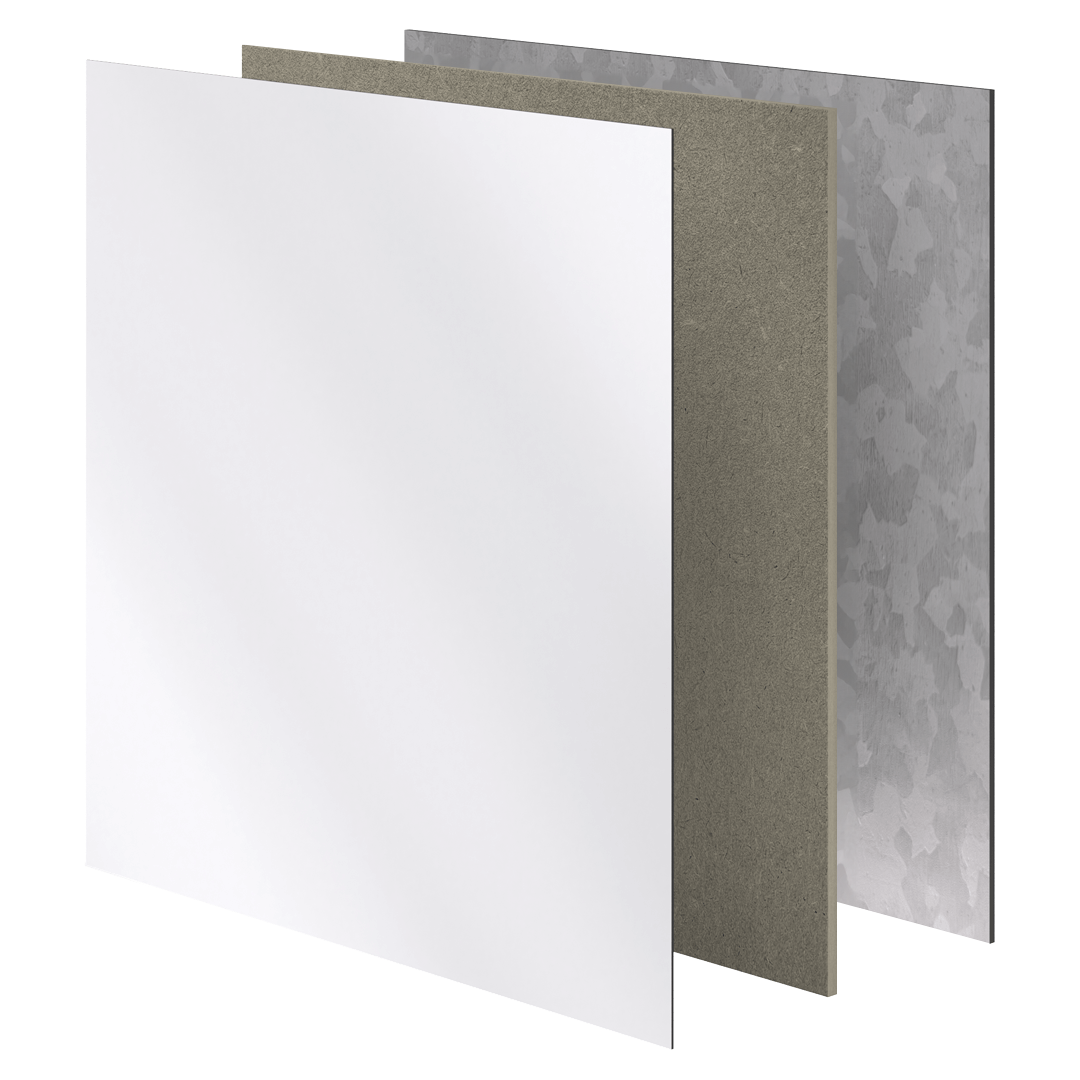

MDF 9 1

Balancing the Core of Quality

Our porcelain-enameled steel panels inherit the exceptional properties that define our coils and sheets. They embody strength, consistency, and endurance.

Resistant to scratches and corrosion, impervious to stains, and colorfast over time, these panels make cleaning a breeze, reduce maintenance, and lower life cycle costs.

You can find these porcelain-enameled steel panels in various infrastructure settings:

Metro, Train, and Rail Stations
Airport Terminals
Underpasses and Roadway Tunnels
Public Spaces, Corridors, and Lobbies
Restroom Facilities and Clean Rooms



Innovation knows no boundaries, and neither should your designs. Explore the limitless possibilities and elevate your vision with panels that are as exceptional as they are enduring.

Chemical
Resistant

Scratch
Resistant

Fire
Resistant

Vandal
Resistant

Magnetic

Stain
Resistant

Bacterial
Resistant

Easy
To Clean

Sustainable

Lifetime
Warranty

INTERIOR SOLID COLORS

White

PV Code 6100 HE / SE RAL 9003 Hex #E4E3DC

Light Grey

PV Code 6101 H RAL 7035 Pantone 400 C Hex #C2C1BC

Pigeon Blue

PV Code 7569 RAL 5014 Pantone 5405 C Hex #537684

Clearwater

PV Code 7644 HE Pantone 2176 C Hex #A2B3B8

Coastline

PV Code 7571 HG Pantone 7529 C Hex #C0B1A2

Blush

PV Code 7646 HE Pantone 7590 C Hex #D2AF9D

Rain

PV Code 7624 S Pantone Cool Grey 5C Hex #AFB0B2

Beige

PV Code 6102 H RAL 1015 Hex #E6DAC1

Glacier

PV Code 7645 HE Pantone 5507 C Hex #9EB4B2

PV Code 7610 RAL 1001 Pantone 7502 C Hex #ceb58f

PV Code PEI-28 RAL 3007 Pantone BLACK 4 C Hex #220d00

PV Code 7275 RAL 9005 Pantone BLACK 6 C Hex #0b1416

PV Code 7620 RAL 6019 Pantone 559 C Hex #b1c4a9

PV Code 7612 RAL 1035 Pantone 403 C Hex #908271

PV Code 6107 RAL 5015 Pantone 2150 C Hex #0073a1

Green Chalk

PV Code 6500 e3C RAL 6028 Pantone 7736 C Hex #3c5d4e

Black Chalk

PV Code 6501 C RAL 7021 Pantone Black 7C Hex #38393A

Grey Chalk

PV Code 6502 e3C RAL 7043 Pantone Traffic Grey B Hex #575656

INTERIOR – CeramicSteel panels bonded to a substrate and backside sheet. Multiple edge options, single or double-sided. Ideal for interior use only.

FINISHING OPTIONS

You can determine the finishing and thickness of the panel. We offer a set of standard substrate choices and three finishing options:

EDGEBASIC

Basic
No edge finished cut,
edges not painted

EDGE STANDARD

Standard
Edge finished cut,
edges not painted

EDGE FINISHED

Finished
Edge finished cut,
painted edges.

INTERIOR BASIC PANELS

For use in combination with a frame. Factory edges, unpainted.

Basic 1-9


9 mm Total Thickness
P 0,56 mm - HC 8 mm - GALV 0,4 mm

Basic 1-13


13 mm Total Thickness
P 0,56 mm - HC 12 mm - GALV 0,4 mm

Basic 2-12 A


12 mm Total Thickness
P 0,56 mm - * MULTI FORCE 11 mm - GALV 0,4 mm
* MULTI FORCE = MIN 11mm LW

Basic 2-12 B


12 mm Total Thickness
P 0,56 mm - * MULTI FORCE 11 mm - ALU 0,4 mm
* MULTI FORCE = MIN 11mm LW

Basic 3-10


10 mm Total Thickness
P 0,56 mm - MDF 9 mm - GALV 0,4 mm

Basic 3-13 A


13 mm Total Thickness
P 0,56 mm - MDF 12 mm - GALV 0,4 mm

Basic 3-13 B


13 mm Total Thickness
P 0,56 mm - MDF 12 mm - ALU 0,4 mm

BASIC PANEL DIMENSIONS

Panel Type

CeramicSteel Composite 3 mm (single-sided)

CeramicSteel Composite 3 mm (double-sided)

CeramicSteel MDF 6 (single-sided)

CeramicSteel MDF 12 (single-sided)

CeramicSteel MDF 6 (double-sided)

CeramicSteel MDF 12 (double-sided)

Panel Dimensions

48″ x 96″

48″ x 96″

48″ x 96″

48″ x 96″

48″ x 96″

48″ x 96″

Weight

14,9 lbs

22,7 lbs

23,6 lbs

33,1 lbs

23,6 lbs

33,1 lbs

INTERIOR STANDARD PANELS

Waterjet cut edges, unpainted.

Standard 1-9


9 mm Total Thickness
P 0,56 mm - HC 8 mm - GALV 0,4 mm

Standard 1-13


13 mm Total Thickness
P 0,56 mm - HC 12 mm - GALV 0,4 mm

Standard 2-12 A


12 mm Total Thickness
P 0,56 mm - * MULTI FORCE 11 mm - GALV 0,4 mm
* MULTI FORCE = MIN 11mm LW

Standard 2-12 B


12 mm Total Thickness
P 0,56 mm - * MULTI FORCE 11 mm - ALU 0,4 mm
* MULTI FORCE = MIN 11mm LW

Standard 3-10


10 mm Total Thickness
P 0,56 mm - MDF 9 mm - GALV 0,4 mm

Standard 3-13 A


13 mm Total Thickness
P 0,56 mm - MDF 12 mm - GALV 0,4 mm

Standard 3-13 B


13 mm Total Thickness
P 0,56 mm - MDF 12 mm - ALU 0,4 mm

STANDARD PANEL DIMENSIONS

Panel Type

CeramicSteel Composite 3 mm (single-sided)

CeramicSteel Composite 3 mm (double-sided)

CeramicSteel MDF 6 (single-sided)

CeramicSteel MDF 12 (single-sided)

CeramicSteel MDF 6 (double-sided)

CeramicSteel MDF 12 (double-sided)

Panel Dimensions

47″ x 95″

47″ x 95″

47″ x 95″

47″ x 95″

47″ x 95″

47″ x 95″

Weight

15,9 lbs

22,7 lbs

23,6 lbs

33,1 lbs

23,6 lbs

33,1 lbs

INTERIOR FINISHED PANELS

Waterjet edges and sealed with a durable and attractive lacquer.

Finished 1-9


9 mm Total Thickness
P 0,56 mm - HC 8 mm - GALV 0,4 mm

Finished 1-13


13 mm Total Thickness
P 0,56 mm - HC 12 mm - GALV 0,4 mm

Finished 3-10


10 mm Total Thickness
P 0,56 mm - MDF 9 mm - GALV 0,4 mm

Finished 3-13 A


13 mm Total Thickness
P 0,56 mm - MDF 12 mm - GALV 0,4 mm

Finished 3-13 B


13 mm Total Thickness
P 0,56 mm - MDF 12 mm - ALU 0,4 mm

FINISHED PANEL DIMENSIONS

Panel Type

CeramicSteel Composite 3 mm (single-sided)

CeramicSteel Composite 3 mm (double-sided)

CeramicSteel MDF 6 (single-sided)

CeramicSteel MDF 12 (single-sided)

CeramicSteel MDF 6 (double-sided)

CeramicSteel MDF 12 (double-sided)

Panel Dimensions

47″ x 95″

47″ x 95″

47″ x 95″

47″ x 95″

47″ x 95″

47″ x 95″

Weight

15,9 lbs

22,7 lbs

23,6 lbs

33,1 lbs

23,6 lbs

33,1 lbs

ACCENTED EDGE COLORS

Discover the perfect finish for your design with our accented edge color options for finished panels. Designed to complement your unique vision and enhance the durability and beauty of your installations.

* Actual colors may vary.
   Custom colors available upon request.

PLUM

Nearest PMS 249 C

CHILI

Nearest PMS 18-1564 TPG

POMEGRANATE

Nearest PMS 18-1564 TPG

PAPAYA

Nearest PMS 486 C

MANGO

Nearest PMS 130 C

CITRON

Nearest PMS 17-1140 TPG

HONEY

Nearest PMS 14-1036 TPG

IVY

Nearest PMS 7736 C

LAGOON

Nearest PMS 17-4716 TPG

AZURE

Nearest PMS 2150 C

BALTIC

Nearest PMS 19-4229 TPG

BLACK

Nearest PMS Black C

TRUFFLE

Nearest PMS 19-0910 TPG

PLATINUM

Nearest PMS 17-4402 TPG
